Improve Building Ventilation with Fan System Maintenance

building ventilation fan rate measurement velocity grid save energy money kw engineering

Monitoring and maintaining building ventilation rates are now more relevant than ever for occupant health and safety. In this article, I share how our team diagnosed an underperforming supply fan and underscore the importance of routine fan system maintenance.

In March of this year, I conducted airflow measurements at a Bay Area building and discovered that the building’s largest ventilation unit was operating at 30% below its design airflow. The supply fan was constant-speed, and airflow measurements from the building’s inception indicated that the unit originally achieved the flowrate it was designed to provide.

The other three ventilation units onsite all operated near their design flows. So, what was going on with the largest ventilation unit?

Diagnosing Reduced Airflow in Your Building Ventilation System

At this site, we had a test and balance (TAB) report from when the building was constructed, so we knew the fan speed that corresponded with system operating at near design flow. We measured the fan’s speed to be about 74% of what it was at the building’s inception.

Because of the ductwork configuration and difficult under-roof access, we could not conduct a pitot traverse measurement, which is the most accurate method of HVAC airflow measurement. Instead, we used a velocity grid, shown below, to measure airspeed at the inlet of the unit.

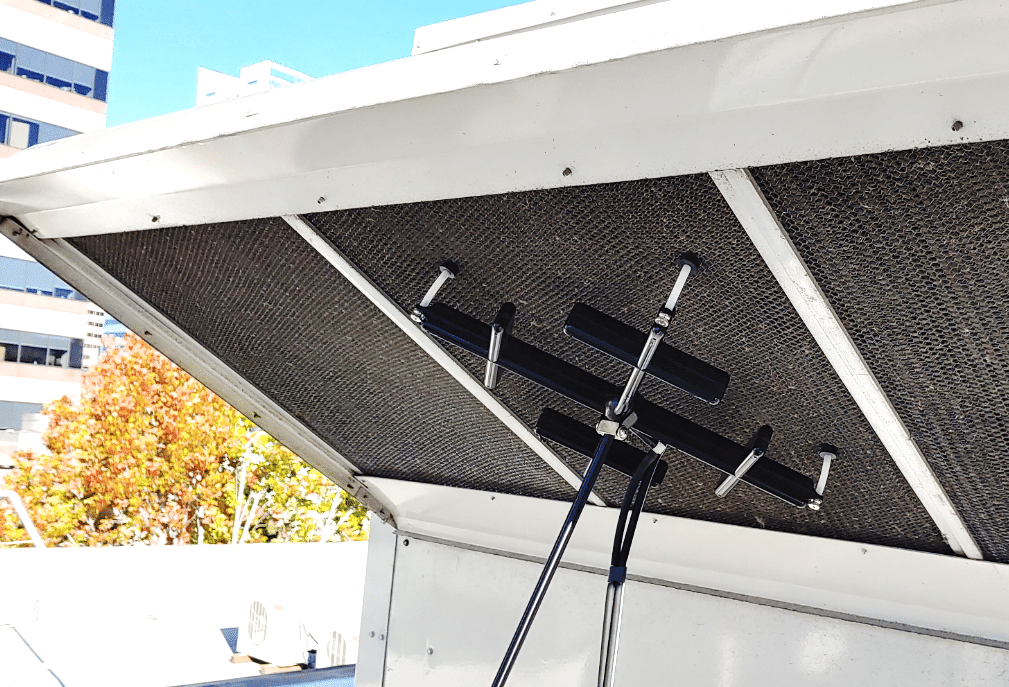

building ventilation fan rate measurement velocity grid save energy money kw engineeringVelocity Grid at Supply Air Intake

By multiplying the airspeed at the supply air intake by the cross-sectional area, we calculated the volumetric flowrate in cubic feet per minute (cfm). Our flow measurement was 69% of the design flow, as shown in the chart below.

building ventilation fan rate graph supply airflow save energy money kw engineeringComparison of Design and Measured Supply Airflow Rates

Airflow measurements typically have an accuracy of ±10%, so multiple methods and measurements can lend confidence to an airflow estimate. Given that our speed measurement suggested a 26% reduction in flow and our airspeed measurement indicated a 31% reduction in flow, we were fairly confident in asserting that the building ventilation unit had undergone a 25% to 30% reduction supply airflow.

Causes of Reduced Flow in Your Building Ventilation System

We didn’t see anything choking airflow, but the dramatic drop in fan speed from the design speed was a clue. We didn’t have time to look at the fan’s belt drive, but we asked the building engineer about the reduction in flow before we left.

He said there were no changes to the ductwork, but he would inspect the belt drive. A week later he called and told me that the belt was beginning to bottom out in the motor pulley, such as shown in the image below. (Note that in belt drives, pulleys are also sometimes called sheaves (pronounced shiv).) We both agreed that something was likely wrong with the belt, and it should be replaced.

fan belt sheave save energy money kw engineeringBelt Beginning Bottom Out in Sheave Groove

Image Credit: TB Wood’s

When a belt drops into a pulley groove, as shown above, the pulley’s effective diameter is reduced, which reduces belt speed. This results in a reduction in fan shaft speed and airflow. There are several explanations for why this occurs.

Worn Pully Walls

First, if the pulley walls are worn, the belt will bottom out more easily, and the pulley should be replaced.

Worn Belt

Second, if the belt is worn, it will drop deeper into the groove and it should be replaced.

Incorrect Belt Dimensions

Third, if the belt has the wrong dimensions required by the pulley, it will not fit properly and should be replaced with the correct belt size.

The Result: Belt Slip

Any of these situations can lead to belt slip, which wastes the belt’s energy and creates heat that can quickly degrade the belt’s structural integrity. Typically, the first sign of belt slip is a screeching sound when the motor starts or stops, or if it’s really worn, it may whine continuously. This is why I recommend using all of your senses in an energy audit. What you hear can be as important as what you see. Any time you hear equipment running, it points to waste. If the equipment were efficient, it would be quiet, by definition. Noise represents energy leaking out of a system in a way you don’t want, generally through a friction-prone weak spot like a sheave, belt, or bearing.

Belt Drive Alignment

Another issue affecting power transmission in belt drives is alignment. Poor alignment results in increased friction on the belt and additional stress on the drivetrain, which accelerates wear and can reduce airflow. The diagram below shows common alignment issues with belt drives.

building ventilation fan belt alignment belt drive save energy money kw engineeringAlignment Issues in Belt Drive Systems

Image Credit: TB Wood’s

Of course, perfect alignment is not always possible. Therefore, many fan manufacturers provide tolerances for deviations from perfect alignment, such as the maximum allowable gaps shown in the image below.

fan belt tolerance belt drive save energy money kw engineeringSheave Alignment Tolerances

Image Credit: Cook O&M Manual

The building engineer reported to us that he carefully inspects for belt drive alignment, so fortunately this was not an issue at his building.

Fan Performance & Energy Impacts

Pulley alignment, belt sizing for the pulley grooves, and belt tension are common causes of underperformance for fan systems. These issues cause more mechanical energy to be dissipated through friction and less energy to be converted into airflow. The motor still consumes relatively high amounts of power, but the fan receives less of that power.

Belts are the most maintenance intensive aspect of a fan assembly. If the belts are too loose or of the incorrect dimensions, the transmission efficiency of mechanical power is reduced. If the belts are too tight, wear and tear of the system’s belts and bearings will accelerate. Finding the correct belt size and the sweet spot of belt tension will keep your system at optimal performance.

Improve Your Building Ventilation

A couple months after my initial measurements, the building engineer called and told me that he had replaced the belt with a new one that was correctly sized and flush with the pulley. Unfortunately, I was not able to re-evaluate the supply airflow to quantify the difference in ventilation, but we both felt more peace of mind knowing that the belt drive on that ventilation unit was restored to good condition.

Routine maintenance inspections help avoid performance degradation. Consult the Operations & Maintenance manual of your equipment for recommended maintenance procedures. ASHRAE Standard 180 also provides standard practice for inspection and maintenance of commercial building HVAC systems.

If you have questions about building ventilation systems or your building’s energy use, contact us at any time.
